Quantum Hadamard Edge Detection for Image Processing

Based on the paper: “Edge Detection Quantumized: A Novel Quantum Algorithm for Image Processing” https://arxiv.org/html/2404.06889v1 This notebook demonstrates:
  1. QPIE (Quantum Probability Image Encoding) encoding
  2. QHED (Quantum Hadamard Edge Detection) algorithm
The encoding was implemented based on this paper: https://arxiv.org/pdf/1801.01465
import math
from typing import List

import matplotlib.pyplot as plt
import numpy as np

from classiq import *

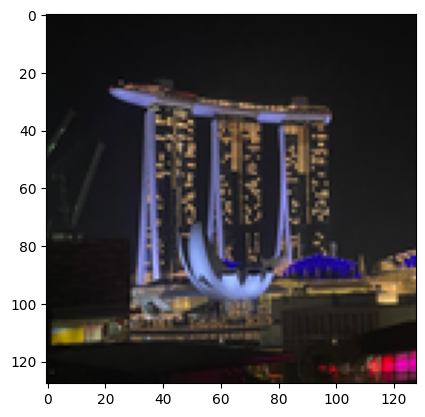

# original
photo = []
photo = plt.imread("Marina Bay Sands 128.png")

plt.imshow(photo)
Output:
<matplotlib.image.AxesImage at 0x1117e14d0>
output
segments = [i / 255 for i in [0, 30, 60, 90, 120, 150, 180, 210, 255]]
image = np.array(photo)
# print(segments)
# print(image)
for i in range(1, len(image)):
    for j in range(len(image[i])):
        pixel = image[i][j][0]
        for s in segments:
            if pixel >= s:
                image[i][j][0] = s
                image[i][j][1] = s
                image[i][j][2] = s
# print("AFTER THE UPDATE")
# print(image)

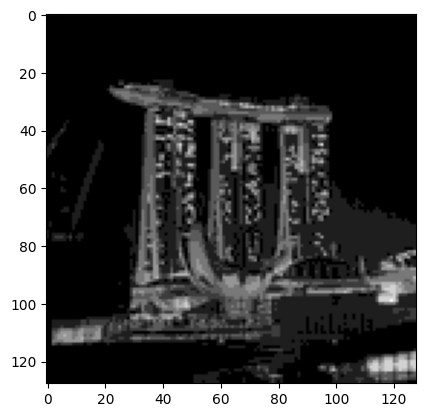

plt.imshow(image)
image = np.array(photo)
output

​
QPIE Encoding Implementation

Now, convert an image into valid QPIE probability amplitudes. The image is converted to grayscale if needed, flattened to a 1D vector, made non-negative, and L2-normalized so the sum of squared values equals
  1. If the image is all zeros, a uniform normalized vector is returned to avoid division by zero.
def normalize_image(image: np.ndarray) -> np.ndarray:
    """
    Normalize image pixels to create valid probability amplitudes.

For QPIE, the image is represented as:
    |img⟩ = Σ(x,y) (I_xy / √(Σ I_xy²)) |xy⟩

    Args:
        image: Input image as numpy array

    Returns:
        Normalized probability amplitudes
    """
    # Flatten the image
    flat_image = image.flatten()

    # Normalize to get probability amplitudes
    # Ensure all values are non-negative
    flat_image = np.abs(flat_image)

    # Calculate normalization factor
    norm_factor = np.sqrt(np.sum(flat_image**2))

    if norm_factor == 0:
        # Handle edge case of all-zero image
        normalized = np.ones_like(flat_image) / np.sqrt(len(flat_image))
    else:
        normalized = flat_image / norm_factor

    return normalized


def image_to_qpie_amplitudes(image: np.ndarray) -> List[float]:
    """
    Convert an image to QPIE probability amplitudes.

    Args:
        image: Input image (grayscale or color)

    Returns:
        List of normalized probability amplitudes
    """
    if len(image.shape) == 3:  # Color image
        # Convert to grayscale
        image = np.mean(image, axis=2)

    # Normalize the image
    amplitudes = normalize_image(image)

    return amplitudes.tolist()


@qfunc
def qpie_encoding(image_qubits: Output[QArray[QBit]]):
    """
    QPIE (Quantum Probability Image Encoding) implementation.

Encodes image pixels as probability amplitudes:
    |img⟩ = Σ c_i |i⟩

    where c_i are normalized pixel values.

    Args:
        amplitudes: Normalized pixel values as probability amplitudes
        image_qubits: Output qubits storing the encoded image
    """
    # Calculate number of qubits needed
    num_pixels = len(AMPLITUDES)
    num_qubits = math.ceil(math.log2(num_pixels))

    # Allocate qubits for image encoding
    allocate(num_qubits, image_qubits)

    # Use inplace_prepare_amplitudes to encode the amplitudes
    inplace_prepare_amplitudes(AMPLITUDES, 0, image_qubits)


amplitudes = image_to_qpie_amplitudes(image)
# print(f"{amplitudes=}")


len(amplitudes)
Output:
16384

​
Modified QHED Algorithm

The QHED algorithm detects edges by:
  1. Adding an auxiliary qubit in ∣+⟩|+\rangle state
  2. Applying amplitude permutation to shift pixels
  3. Applying Hadamard to compute differences
  4. Measuring to get edge information
from classiq.qmod.symbolic import logical_or


@qfunc
def quantum_edge_detection_scalable(
    # n_qubits: CInt,  # Number of position qubits
    edge_aux: Output[QBit],
    position: Output[QNum],
):

    # We use the QPIE encoding to encode the image in the quantum state
    qpie_encoding(image_qubits=position)

    # Create the vertical and horizontal correlation checks
    horizontal_edge = QBit()
    vertical_edge = QBit()
    allocate(horizontal_edge)
    allocate(vertical_edge)

    # QHED edge detection
    within_apply(
        within=lambda: H(horizontal_edge),
        apply=lambda: (
            control(
                horizontal_edge, lambda: inplace_add(-1, position)
            ),  # Cyclic shift one left
        ),
    )
    within_apply(
        within=lambda: H(vertical_edge),
        apply=lambda: (
            control(
                vertical_edge, lambda: inplace_add(-n, position)
            ),  # Cyclic shift one up
        ),
    )

    edge_aux |= logical_or(horizontal_edge, vertical_edge)
    drop(horizontal_edge)
    drop(vertical_edge)


# Create and synthesize the 2x2 model

AMPLITUDES = amplitudes
n = int(np.sqrt(len(AMPLITUDES)))
print(f"Creating {n}x{n} image edge detection model...")
Output:

Creating 128x128 image edge detection model...

​
Synthesize and Analyze the Quantum Circuit

The model is synthesized with a 20-qubit width limit and a long timeout, and finally exported as quantum_image_edge_detection with 15-digit numeric precision.
@qfunc
def main(
    pos: Output[QNum],
    edge_aux: Output[QNum],
):
    quantum_edge_detection_scalable(edge_aux=edge_aux, position=pos)


qprog = synthesize(
    main,
    constraints=Constraints(max_width=20),
    preferences=Preferences(timeout_seconds=14400),
)


print(f"\n{n}x{n} Image Circuit Statistics:")
print(f"

- Number of qubits: {qprog.data.width}")
print(f"

- Circuit depth: {qprog.transpiled_circuit.depth}")
print(
    f"

- Number of gates: {qprog.transpiled_circuit.count_ops if hasattr(qprog.transpiled_circuit, 'count_ops') else 'N/A'}"
)
Output:
128x128 Image Circuit Statistics:


- Number of qubits: 17


- Circuit depth: 32995


- Number of gates: {'u': 16903, 'cx': 16878}



show(qprog)
Output:

Quantum program link: https://platform.classiq.io/circuit/36qAK2Al0RP6zgLHxrbafMRglxX



qprog = set_quantum_program_execution_preferences(
    qprog, preferences=ExecutionPreferences(num_shots=200000)
)
res = execute(qprog).result()[0].value
res.dataframe
pos edge_aux count probability bitstring
0 11710 0 173 0.000865 010110110111110
1 11839 0 169 0.000845 010111000111111
2 11316 0 162 0.000810 010110000110100
3 11712 0 162 0.000810 010110111000000
4 11711 0 159 0.000795 010110110111111
… … … … … …
17285 16371 1 1 0.000005 111111111110011
17286 16372 1 1 0.000005 111111111110100
17287 16375 1 1 0.000005 111111111110111
17288 16376 1 1 0.000005 111111111111000
17289 16377 1 1 0.000005 111111111111001

17290 rows × 5 columns

​
Create Edge Image From Measurement Results

If [“edge_aux”] == 1 then it is marked as an edge pixel. The new amplitude is calculated based on the number of shots measured for that pixel, normalized by the total number of shots.
new_amplitudes = dict()
for pos in range(len(AMPLITUDES)):
    new_amplitudes[pos] = 0

num_shots = sum([pc.shots for pc in res.parsed_counts])

# if marked as edge, set new amplitude normalized
for pc in res.parsed_counts:
    if pc.state["edge_aux"] == 1:
        new_amplitudes[pc.state["pos"]] = float(np.sqrt(pc.shots / num_shots))
# set amplitude in image of edges
edge_image = np.zeros((n, n))
for i in range(n):
    for j in range(n):
        edge_image[i, j] = new_amplitudes[n * i + j]
Analyze amplitude distributions

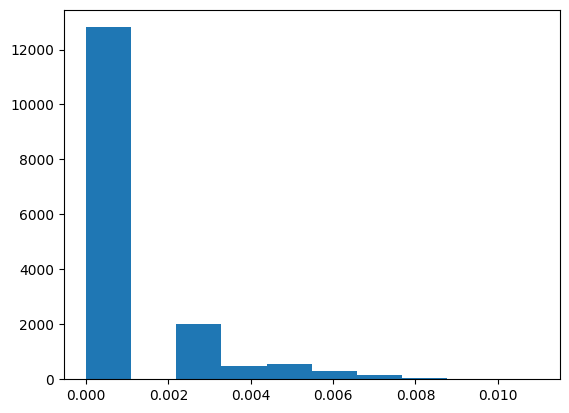

plt.hist(new_amplitudes.values())
Output:
(array([1.2809e+04, 0.0000e+00, 2.0090e+03, 4.9500e+02, 5.3900e+02,
          3.1900e+02, 1.4400e+02, 5.1000e+01, 1.6000e+01, 2.0000e+00]),
   array([

0.        , 0.00109545, 0.00219089, 0.00328634, 0.00438178,
          0.00547723, 0.00657267, 0.00766812, 0.00876356, 0.00985901,
          0.01095445]),
   <BarContainer object of 10 artists>)
output Some amplitudes are extremely small and can be treated as noise; discarding them yields a cleaner edge image.
edge_image = np.zeros((n, n))
for i in range(n):
    for j in range(n):
        edge_image[i, j] = (
            new_amplitudes[n * i + j] if new_amplitudes[n * i + j] > 0.003 else 0
        )

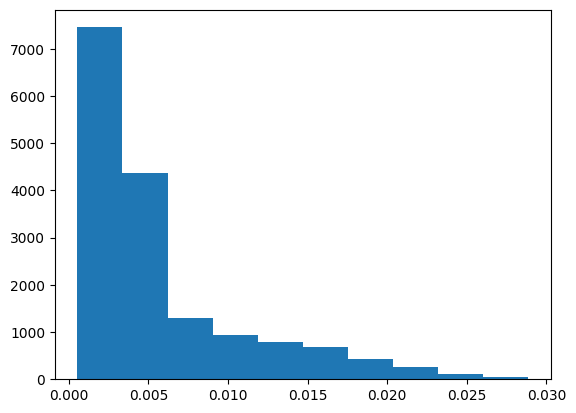

plt.hist(AMPLITUDES)
Output:
(array([7454., 4363., 1308.,  942.,  786.,  677.,  426.,  252.,  118.,
            58.]),
   array([0.00054111, 0.00337295, 0.00620478, 0.00903661, 0.01186845,
          0.01470028, 0.01753211, 0.02036395, 0.02319578, 0.02602761,
          0.02885945]),
   <BarContainer object of 10 artists>)

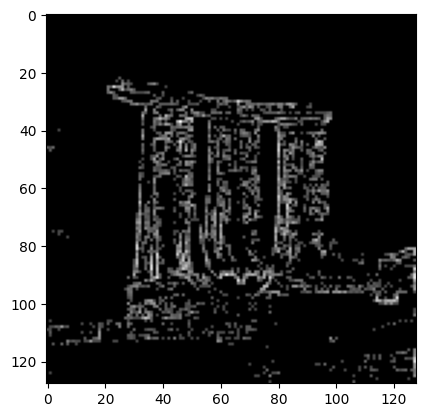

output The resulting edge-detected image
plt.imshow(edge_image, cmap="gray")  # , cmap="gray")
Output:
<matplotlib.image.AxesImage at 0x162e09e20>
output In comparison, the original image is:
plt.imshow(image)
Output:
<matplotlib.image.AxesImage at 0x162e2d8b0>
output
